Hlau Bar Dabtsi Yog Khoov Tshuab
KHOOM KEV PAB CUAM Bar bending machine uas muab los ntawm peb yog tsim los khoov lub pob mus txog 6 hli mus rau 38mm. Cov kab uas siv qhov bar bending tshuab yog ua haujlwm ntawm 3kW / 4HP Fais fab. Cov cav tov no muaj siab rau kev thov rau Txoj Haujlwm Tuam Txhab Txoj Haujlwm. Qhov ntau ntawm bar bending machine peb muab ...
- Khoom Taw qhia
KHOOM UA LI CAS
Bar dabtsi yog khoov cov khoom siv los ntawm peb yog tsim los khoov lub pob mus txog 6 hli mus rau 38mm. Cov kab uas siv qhov bar bending tshuab yog ua haujlwm ntawm 3kW / 4HP Fais fab. Cov cav tov no muaj siab rau kev thov rau Txoj Haujlwm Tuam Txhab Txoj Haujlwm. Qhov ntau ntawm cov bar bending machine peb muab renders du ua hauj lwm ntev dua. Tsis tas li ntawd, qhov kev ua tiav siab ntawm peb cov khoom siv hluav taws xob tuav tshuab nrog kev ua haujlwm kev sib hloov.

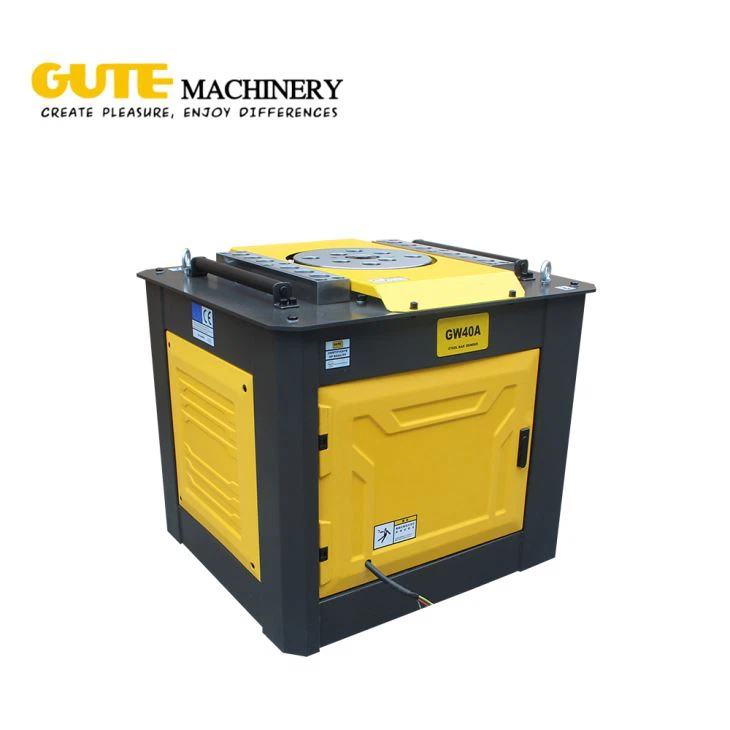

Hlau Bar Bender GW40A Automatic / Los Ntawm Txhais Tes | ||
Bending Capacity | 6-38 hli (ob ≤450N / mm2) | 6-36 hli (ob ≤ 650N / mm2) |
Ua haujlwm | Tsis siv neeg | Kev tuav pov hwm |
Hom Tsav Tsheb | Y100L2-4 (Nres tsav) | Y100L2-4 |
Lub Cev Muaj Zog | 3 KW-4P | 3 KW-4P |
Tsav Kev Hloov Zog | 1430 R / min | 1430 R / min |
Tus Ceev ntawm Kev Ua Lag Luam | 8-11 R / min | 8-11 R / min |
Cov nqi nrov (1m tawm) | ≤80dB (A) | ≤ 75dB (A) |
Nyhav | 310 Kg. | 305Kg. |
Dimension | 850 × 760 × 800 hli | 850 × 760 × 800 hli |
Daim ntawv pov thawj | 2006/42 / EC - 2006/95 / EC | |
