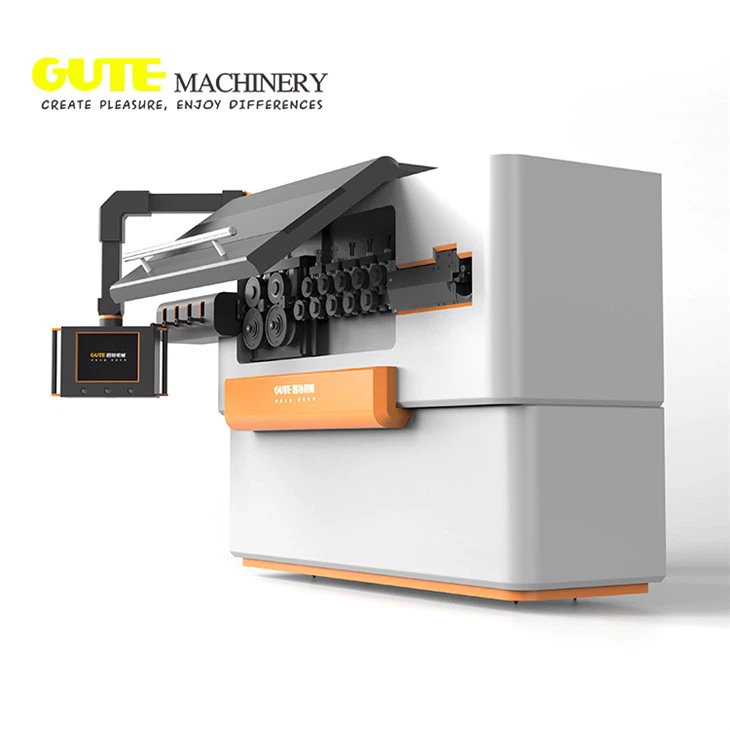

CNC STEEL BAR STIRRUP BENDER SGW10A

	TENSILE HEEV	HRB Tsawg dua lossis sib npaug rau 400
	IB TUG WIRE BENDING	4-10mm
	DOUBLE WIRE BENDING	4-8mm
	Kev ua haujlwm	Computer numerical tswj (CNC)
	MAX. BENDING ANGLE	180 degree(ib txoj kev khoov)
	MAX. LENGTH NTAWM STIRRUP Side	500 hli
	MIN. LENGTH NTAWM STIRRUP Side	60 hli
	MAX. Khoov ceev	1200degree / sec
	MAX. TRACTION SPEED	60m/min
	BENDING DIRECTION	Ib-kev taw qhia
	TRACTION SERVICE MOTOR HAUJ LWM	5.5KW
	BENDING SERVICE lub cev muaj zog	4.4KW
	TXOJ CAI MOTOR	3KW
	TAG NRHO HUV	12KW
	AERAGE ELECTRIC CONSUMPTION	3 KW/H
	L×W×H	2530×960×1640 hli
	LUB SIJ HAWM	1T







• 1200-2400stirrups ntau lawm ib teev, 1200 stirrups rau 8 hli ib-xaim, 2400 stirrups rau ob-xaim.
• 1xyoo dawb warranty kev pab cuam.
• Cov khoom siv hluav taws xob yog cov npe nrov xws li CHINT thiab MEAN WEL. Lub zog ntawm traction thiab dabtsi yog khoov yog muab los ntawm servo lub cev muaj zog, nrog kev ua haujlwm siab thiab raug Txhawb nqa ntau hom lus sib tham sib tham, ua haujlwm yooj yim.
• Txhua qhov kev sib kis tau txais tus qauv reducer kis tau tus mob, nrog cov qauv ruaj khov thiab kev sib kis tau zoo.
• Lub cev hnyav thiab compact, yooj yim dua thiab yooj yim rau kev thauj thiab nruab.
• Cov txheej txheem tsim khoom tsis tas yuav tsum muaj huab cua thiab hydraulic siab, nws tuaj yeem siv tam sim tom qab ntsaws, thiab siv tus nqi qis dua, yooj yim thiab ceev.

Muaj nuj nqi:

Lub tshuab no tuaj yeem ua cov txheej txheem stirrup square, duab plaub, voj voog, hooks, ntev ncaj bar thiab ntau pua daim duab.

Txheej txheem§4-10mmib kab thiab§4-8mmob lub xov hlau rau deformed steel kauj.







• Cov khoom siv yog tsim los ntawm kev hloov kho ua ntej, sib dhos traction, straightening los ua ke, shearing thiab dabtsi yog khoov los ua ke thiab lwm yam.



• Pre-hloov kev sib dhos. Pre-adjustment los ua ke: Nws muaj plaub txheej ntawm pre-kho lub log uas tuaj yeem kho qhov kev ncua deb, kom paub txog txoj kab rov tav ncaj ntawm ntau hom steel tuav. Ob chav-groove bearing yog siv los ua lub pre-hloov log, uas tsis tsuas yog ua kom lub neej kev pab cuam, tab sis kuj ua rau nws kev lag luam.





• Traction los ua ke: Nws muaj ob pawg ntawm traction log thiab lub log siab. Lub servo lub cev muaj zog tsav tus qauv reducer tsav ncaj qha. Nws khiav zoo thiab muaj suab nrov tsawg. Lub log traction yog ua los ntawm cov hlau alloy los xyuas kom meej lawv lub neej kev pab. Nyob rau tib lub sijhawm, hnyav-duty series dov bearings yog siv. Raws li lub log nias, nws muaj kev lag luam zoo nyob rau hauv lub hauv paus ntawm kev ua kom lub neej kev pab cuam.





• Kev sib dhos ncaj nraim: Nws muaj tsib txheej ntawm kev kho lub log ua ntej, txhua txheej ntawm kev hloov kho lub log tuaj yeem kho qhov kev ncua deb, thiab tuaj yeem paub txog ntsug ncaj ntawm ntau hom steel tuav. Flat groove bearings yog siv los kho cov log ua ntej kom ntseeg tau tias kev pabcuam lub neej. Raws li lub hauv paus, nws muaj kev lag luam zoo.



• Shearing thiab dabtsi yog khoov los ua ke: muaj li ntawm ib tug shearing module thiab ib tug dabtsi yog khoov module, uas muaj peev xwm paub lub shearing thiab dabtsi yog khoov ntawm steel tuav. Lub servo lub cev muaj zog tsav tus qauv reducer tsav ncaj qha. Txoj haujlwm khoov yog qhov ruaj khov thiab lub suab nrov qis. Lub shearing hniav thiab dabtsi yog khoov Cov pwm thiab dabtsi yog khoov log yog ua los ntawm hlau alloy los xyuas kom meej lawv lub neej kev pab cuam.







1. Them-Off (Kev xaiv ntxiv)

Type1 pay-off Max nqa peev xwm1,500 KGbar.

Type2 pay-off Max nqa peev xwm2,500 KGbar.

Muaj peev xwm dis-assemble thiab yooj yim thauj.



2. Site Layout
