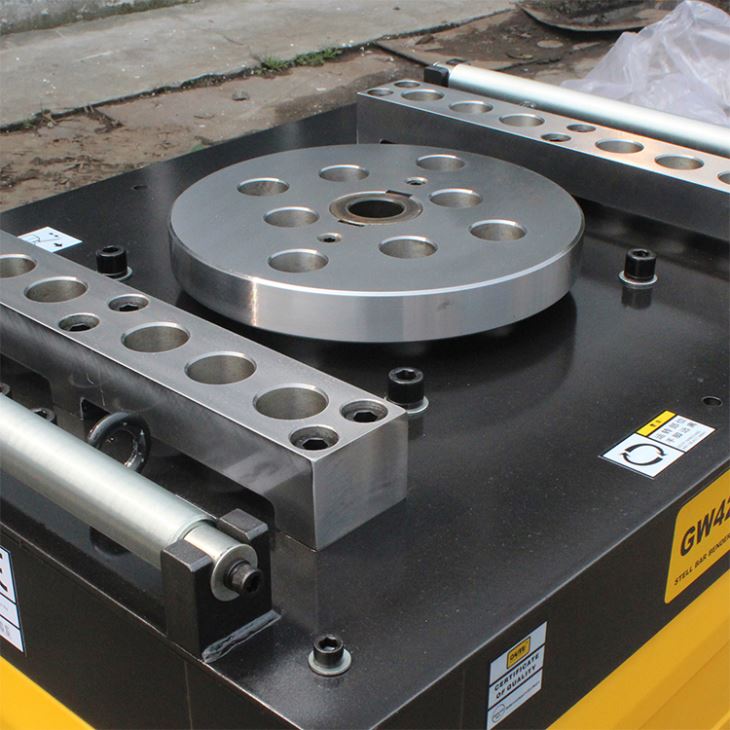

Tuav Bar Bender
Ntaus:
Bending peev mus txog 40mm
3 Theem Qoj muaj kev qhia zoo heev
Kev ua tau zoo heev
Tsawg suab nrov thiab kev vibration
- Khoom Taw qhia
Hlau bar dabtsi yog khoov siv tshuab ua thooj khawm hlau, carbon steel, Ⅱ / Ⅲ ncaj xov, thiab lwm yam kev tsim kho, kev lag luam yuav tsum tau ntau yam dabtsi yog khoov cov khoom ua haujlwm.Qhov cav no mas yog cov tsav iav, khib thiab workbench ntawm peb qhov chaw, kis ntawm kev tsav tsheb los ntawm daim duab peb sab, daim kab xev, iav ncej ua hau kev sib tw, los ua kom tiav cov workpiece bending.
Qauv Hom
GW42D-4 (automatic) YEJ 100L2-4 (Nres tsav)
GW42D-1 (phau ntawv xov xwm) Y100L2-4
• POWER: 3.0 kw-4P
• KEV RUAJ NTSEG: IP44, IP54, IP55 (hmoov av pov thawj)
• HOM TAU LOS: 81%
• CE daim ntawv pov thawj ntawm kev tsim nyog.
* Ob hom ntawm kev siv tsheb thiab cov phau ntawv muaj 1 xyoo warranty.
* VOLTAGE OPTIONS: txhua qhov voltage ntawm 220 mus rau 440 / 220-380 (hloov tau)
* XAIV KEV XAIV: 50Hz / 60Hz
HLAU BAR BENDER GW42D AUTOMATIC / MANUAL | ||
Bending Capacity | 6-40 hli (ob ≤450N / mm2) | 6-36 hli (ob ≤ 650N / mm2) |
Ua haujlwm | Tsis siv neeg | Kev tuav pov hwm |
Hom Tsav Tsheb | YEJ 100L2-4 (Nres tsav) | Y100L2-4 |
Lub Cev Muaj Zog | 3 KW-4P | 3 KW-4P |
Tsav Kev Hloov Zog | 1430 R / min | 1430 R / min |
Tus Ceev ntawm Kev Ua Lag Luam | 12 R / min | 12 R / min |
Cov nqi nrov (1m tawm) | ≤ 75dB (A) | ≤ 75dB (A) |
Nyhav | 360 Kg. | 320 Kg. |
Dimension | 810 * 760 * 860 hli | 810 * 760 * 860 hli |
Daim ntawv pov thawj | 2006/42 / EC - 2006/95 / EC / ISO 9001: 2008 | |
