Kev tuav Rauj Machine Dabtsi Yog Kh ..
Ntaus:
Bending peev xwm txog li 45 hli
3 Theem Qoj muaj kev qhia zoo heev
Kev ua tau zoo heev
Tsawg suab nrov thiab kev vibration
- Khoom Taw qhia
Bar bending tshuab yog ib hom steel bar ua tshuab, lug siv siv tsev teb. Nws muaj los ntawm lub cav, iav, kev lag luam disc, breaker thiab tshuab lub cev. Lub tshuab no nws muaj peev xwm khoov ribbed steel bar ntawm 6 hli mus rau 40/55 hli, nrog ntau yam kev siv hauv kev tsim kho. Raws li muaj peev xwm dabtsi, nws yuav tsum tau dej num GW40, GW50, GW55, qauv bar bending tshuab nrog phau ntawv, automatic, PLC.
Nta:
1. Lub cav, 100% tooj liab lub cev nrog ceev 1420r / min, feem ntau cov cav no ua haujlwm tau 2 xyoo yam tsis muaj kev tawg;
2. Lub iav, peb cov khoom siv hlau yog cov qe hlau QT500-7 uas muaj high precision thiab hardness, cog lus cog lub peev xwm, ua ntev tshaj 5 xyoo.
3.Cov khoom siv ua haujlwm carbon cov qauv steel 45 # lav lub disc ntev ntev nrog 24 teev;
4. Daim duab tha xim, kab xev xeb tawm sab hauv thiab sab nrauv, zoo nkauj thiab cog lus ntev lub tshuab ua haujlwm hauv kev ua haujlwm;
5.Yog ntxiv eccentric bushing, ultra-highness hardness thiab adjustable baffles, tshwj xeeb rau txawv lub cheeb thiab ntev kev pab lub neej

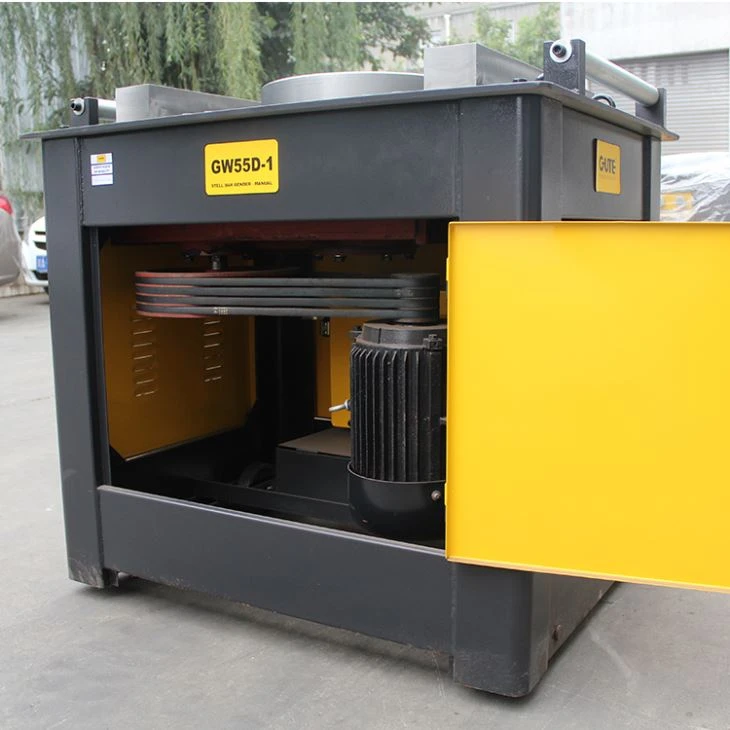

HLAU BAR BENDER GW55D AUTOMATIC / MANUAL | ||
Bending Capacity | 6-45 hli (ob ≤450N / mm2) | 6-42 hli (ob ≤650N / mm2) |
Ua haujlwm | Tsis siv neeg | Kev tuav pov hwm |
Hom Tsav Tsheb | YEJ 112M-4 (Nres motor) | Y 112M-4 |
Lub Cev Muaj Zog | 4 KW-4P | 4 KW-4P |
HORSE POWER | 5.5 HP | 5.5 HP |
Tsav Kev Hloov Zog | 1440 R / min | 1440 R / min |
Tus Ceev ntawm Kev Ua Lag Luam | 8 R / min | 8 R / min |
Cov nqi nrov (1m tawm) | ≤ 75dB (A) | ≤ 75dB (A) |
Nyhav | 595 Kg. | 565Kg. |
Dimension | 910 * 700 * 910 hli | 910 * 700 * 910 hli |
Daim ntawv pov thawj | 2006/42 / EC - 2006/95 / EC / ISO 9001: 2008 | |
Cim npe nrov: kev ceev rebar bending tshuab, manufacturers, tus neeg muag, nqi
